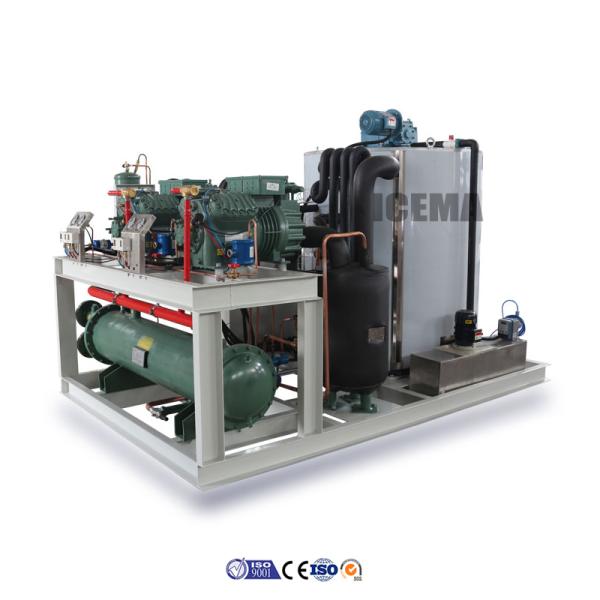

6500 KG Voltage 380V/3P/50HZ Ice Flake Machine for Seafood Fishery at March Trade Fair

Name: 6500 KG Voltage 380V3P50HZ Ice Flake Machine for Seafood Fishery at March Trade Fair
Brand: Icema
Price: 8 USD

Wholesale 6500 KG Voltage 380V/3P/50HZ Ice Flake Machine for Seafood Fishery at March Trade Fair from china suppliers

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Condition : New

Place of Origin : Shanghai, China

Brand Name : Icema

Ice Shape : Flake Ice

Voltage : 380V/3P/50HZ(customizable)

Power : 87.7KW

Dimension(L*W*H) : 4000*3000*2700mm

Weight : 6500 KG

Warranty : 1.5 years

Key Selling Points : Automatic

Ice storage capacity : If you need cold room,pls contact sales

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1.5 years

Core Components : Other, Engine, PLC, Evaporator, Oil Separator, Condenser fan, Gas and fluid separator

Compressor brand : Frascold, Bitzer, Refcomp, Bitzer, Refcomp

Application : Commercial

Refrigerating capacity : 165.7kw

Compressor power : 78.5kw

Refrigerant : R22/R404A

Rated current : 99.2A

Ice temperature : -8℃

Condensation method : Air cooling/Water cooling

Compressor : Germany Bizter,Itay Refcomp

After-sales Service : Free spare parts, commissioning,Video technical support,Online support

Material : SUS304

Price : $8,500.00/pieces 1-2 pieces

Contact Now

6500 KG Voltage 380V/3P/50HZ Ice Flake Machine for Seafood Fishery at March Trade Fair

Product Details

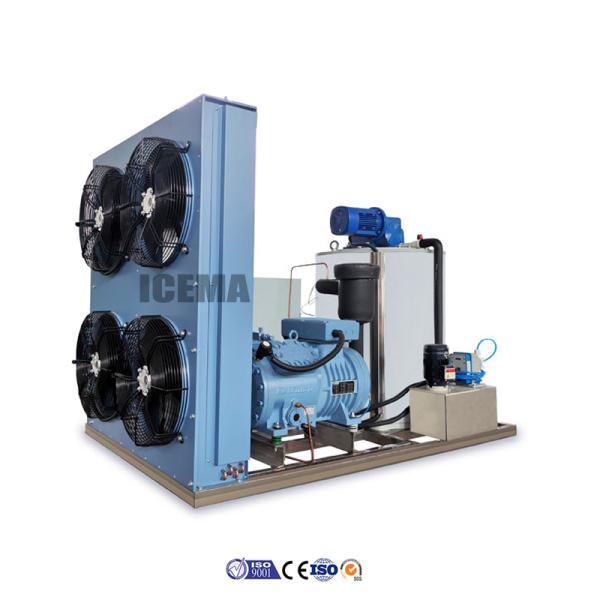

3T FLAKE ICE MACHINE

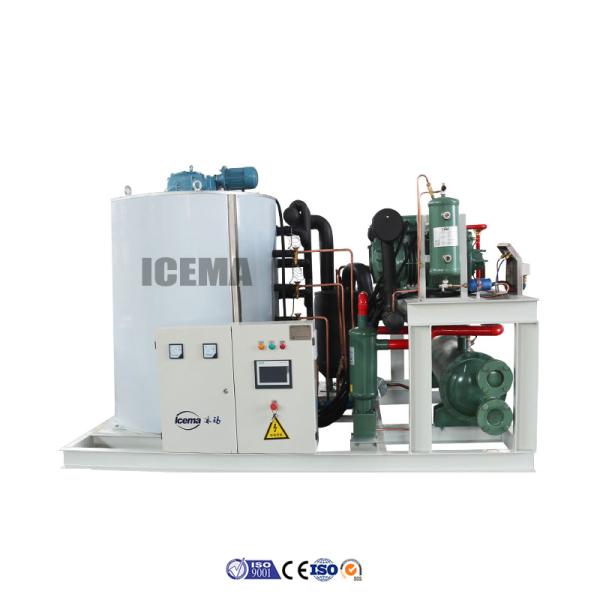

10T FLAKE ICE MACHINE

15T Flake Ice Machine

20T Flake Ice Machine

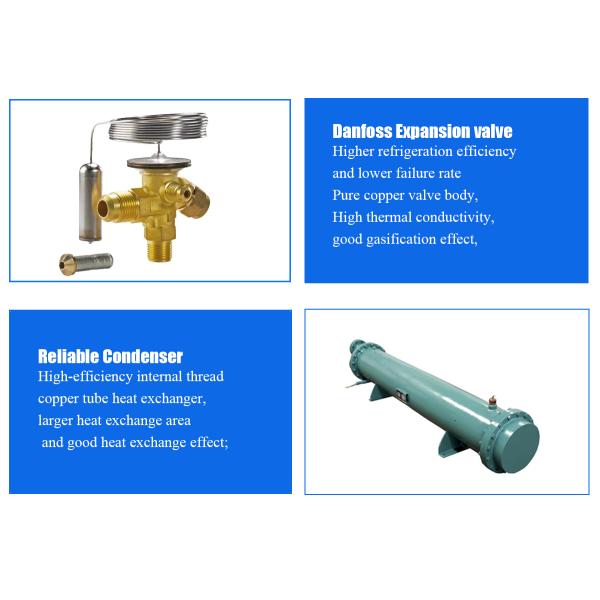

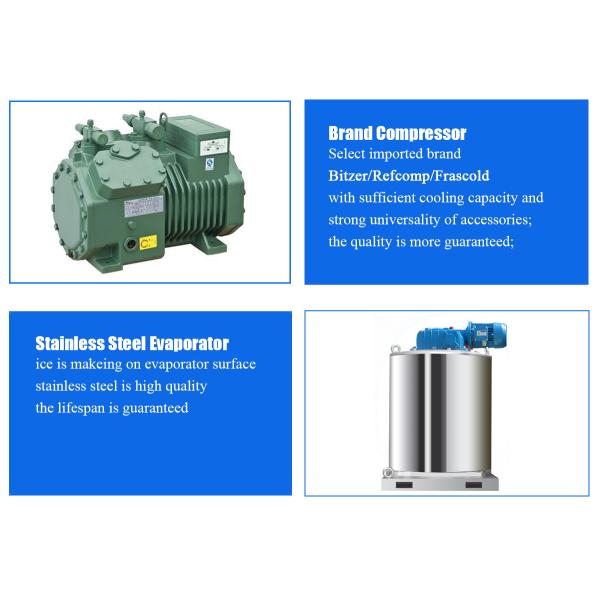

Main Accessories

Products Description

Main Features

1. The ice rake machine adopts modular design, which is easy to assemble and maintain;

the parts are processed by CNC machine tools with high precision and avoid welding defects.

2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.

Flake Ice Applications

The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.

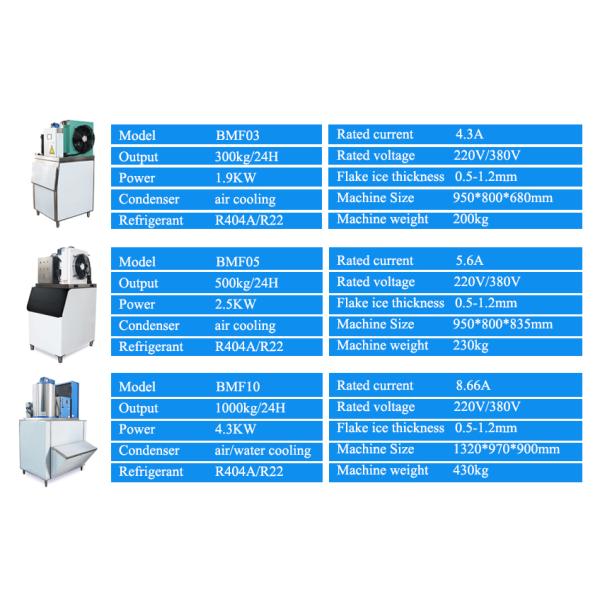

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size *LWH (mm)*
BMF03	0.3T	2.1KW	1.9KW	4.3A	1.5KW	R22/R404A	Water	950800 *680
BMF05	0.5T	3.5KW	2.45KW	5.6A	2.1KW	R22/R404A	Water	950800 810
BMF08	0.8T	5KW	3.5KW	7A	2.9KW	R22/R404A	Water	1320970850
BMF10	1T	6.35KW	4.33KW	8.66A	3.6KW	R22/R404A	Air/ Water	1320970900
BMF20	2T	12.9KW	8.66KW	17.3A	5.88KW	R22/R404A	Air/ Water	150011001050
BMF30	3T	21.5KW	13KW	26A	9.7KW	R22/R404A	Air/ Water	174513601250

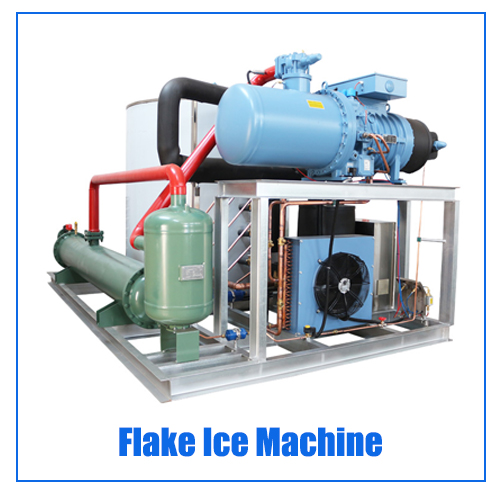

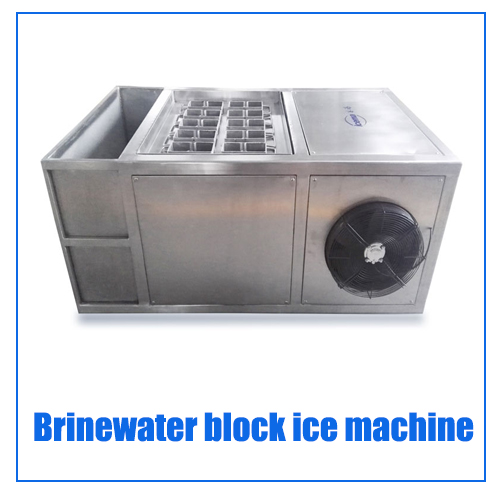

Products catalogues

Company Profile

Certification&Partners

FAQ

1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
